Changing the shellplate

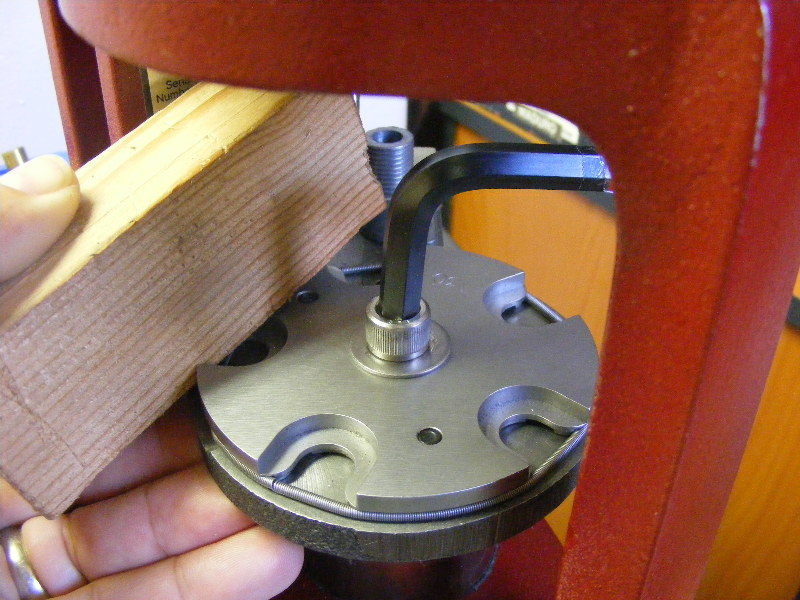

You need to remove the hex-head bolt in the middle of the shellplate. I use a small block of wood to hold the shellplate from rotating while the bolt is undone. Raise the ram a few centimeters while this is being done, to clear the ram off the indexing mechanism.

Changing the shellplate - 2

Partially removed bolt.

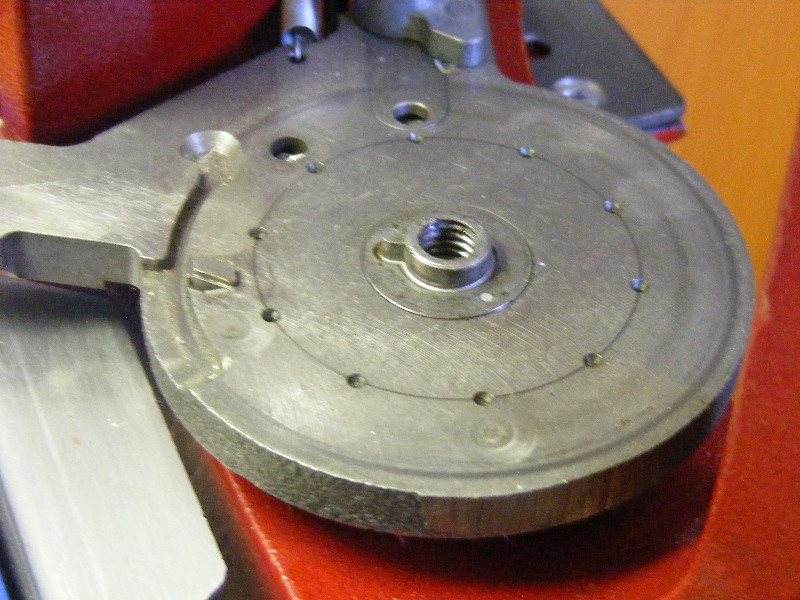

Sheelplate removed - shell retaining spring remains.

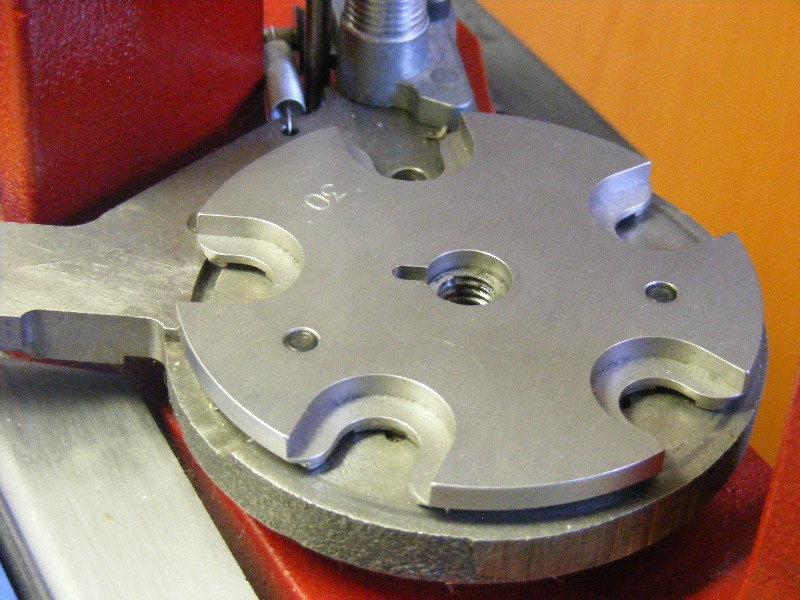

Shellplate removed

Shellplate removed.

New shellplate positioned

New shellplate positioned, ready to be bolted down.

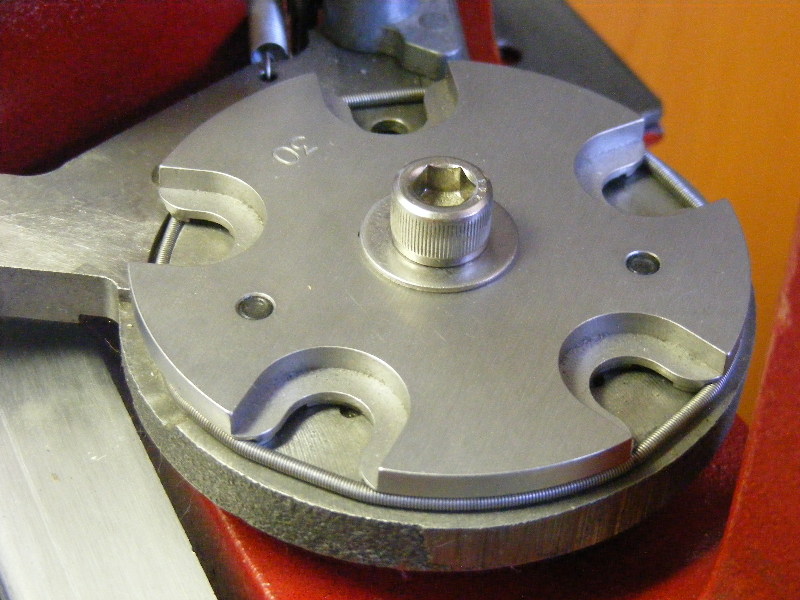

Shellplate retaining bolt inserted

Shellplate retaining bolt inserted, finger tightened only at this point.

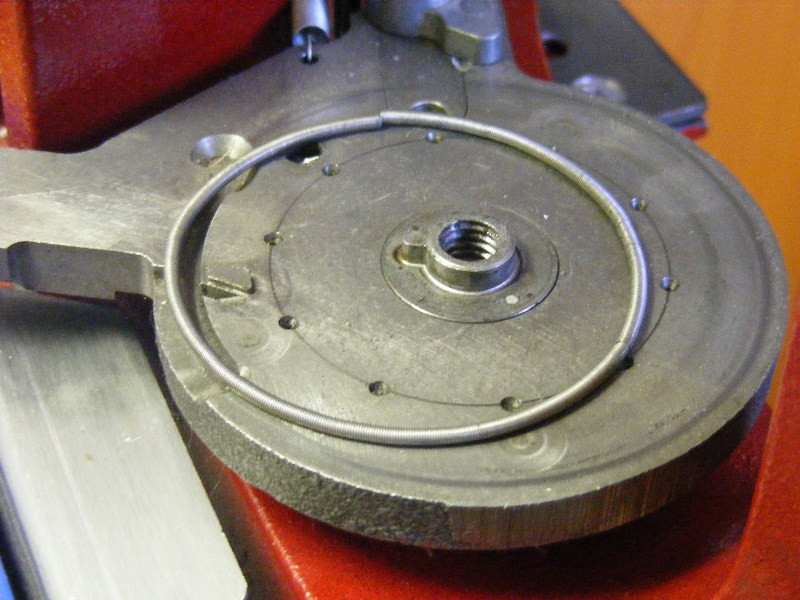

Shellplate retaining spring fitted

The shellplate retaining spring is what keeps the cases on the shellplate while the press is cycled.

It is a very convenient system, because a shell can be taken off and re-inserted at any stage, without tools.

Shellplate fastening

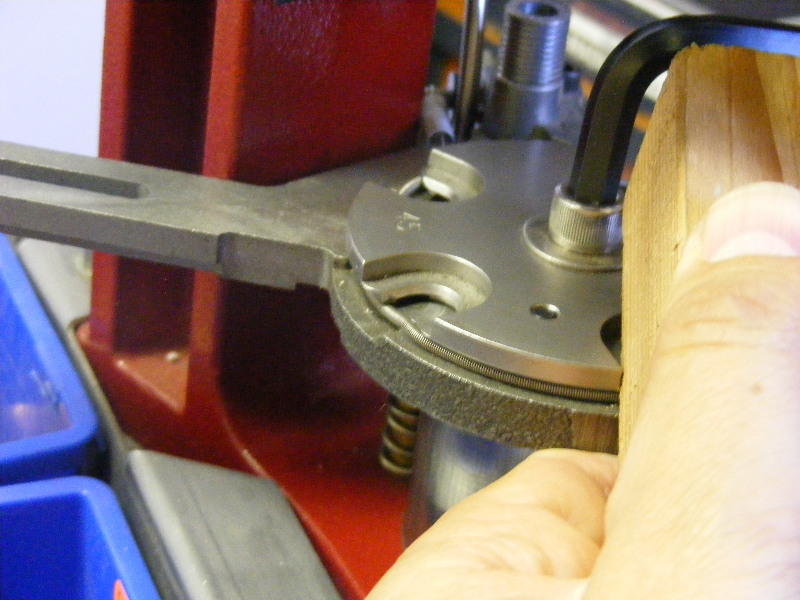

Hex driver and a piece of wood to prevent the shellplate from rotating during bolt tightening. Ram raised enough to disengage the index mechanism during tighitening.
