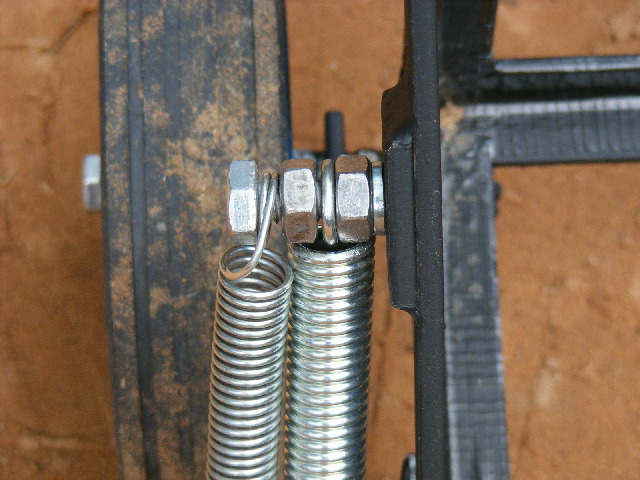

A close-up of the original springs. The bolt is 10mm, and the frame was tapped with 10mm threads.

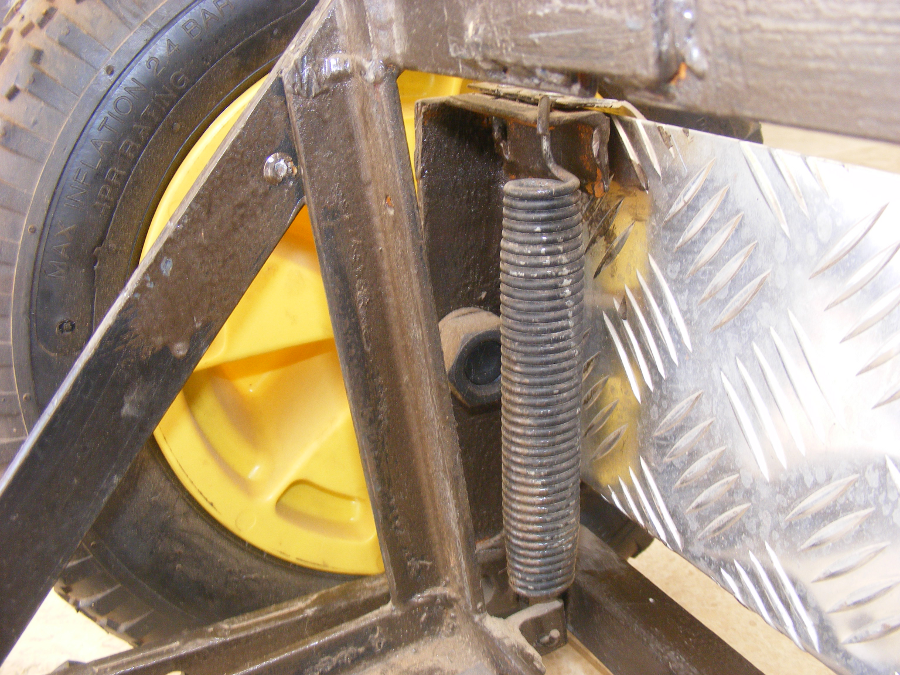

Modified spring position at rear of frame. Much easier to make, and more robust than the previous version.
